Raymarine SeaTalk^ng Starter Kit

SeaTalk^ng is a robust cabling and connection system compatible with NMEA 2000, built specifically for the marine environment comprising a powered single backbone with two terminators, one at each end.

The SeaTalk^ng Starter Kit

The SeaTalk to SeaTalk^ng Starter Kit is the perfect way to get started with your SeaTalk^ng compatible Raymarine product.

The 5-way connector forms the start of your SeaTalk^ng backbone and your SeaTalk^ng product is connected via a Spur Cable.

Starter Kit part number: T70134

What's in the kit?

1. A06064: SeaTalk^ng 5-way Connector
2. A06031: SeaTalk^ng Backbone Terminator (x2)
3. A06040: SeaTalk^ng Spur Cable 3m
4. A06049: SeaTalk^ng Power Cable

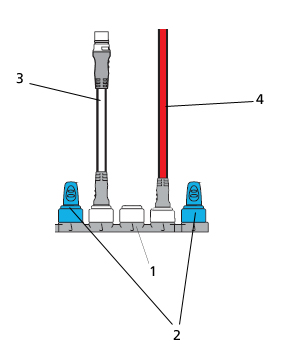

Example Starter Kit Setup

1. SeaTalk^ng 5-way Connector
2. SeaTalk^ng Backbone Terminators
3. SeaTalk^ng Spur Cable connecting to an e7 unit (e7 sold separately)
4. SeaTalk^ng Power Cable
5. A22111: DST800 Transducer (sold separately)

Expanding your Starter Kit

As your Raymarine system expands, so can your starter kit. Additional backbone cables, plugs and sockets can be added so you can connect more products via spur cables. Learn more about SeaTalk^ng networking.
